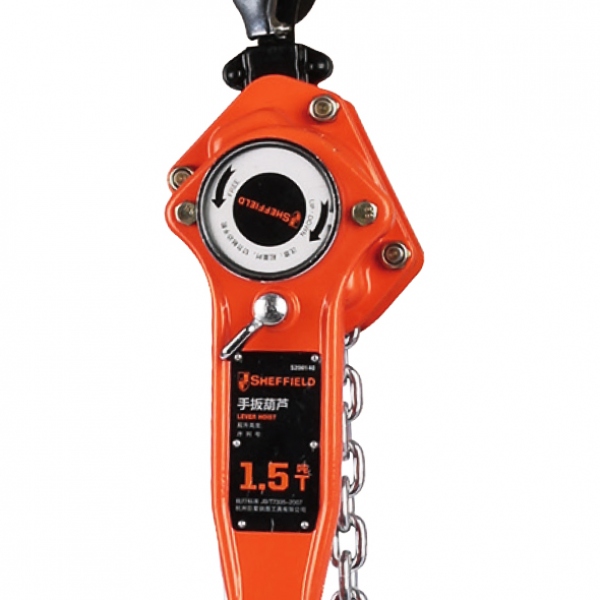

Hoist Series-lever block
Improved rotary gear , alloy steel precision machining, carburizing and heat treated
technology,high hardness of gear, wear-resistant and r🍬ust-proof.
Housings with special crimping technology,higher strength, the chain is smooᩚᩚᩚᩚᩚᩚᩚᩚᩚ𒀱ᩚᩚᩚther.
Improvedtransmission system brin🌼gs more efficient transmission,more flexible operation.

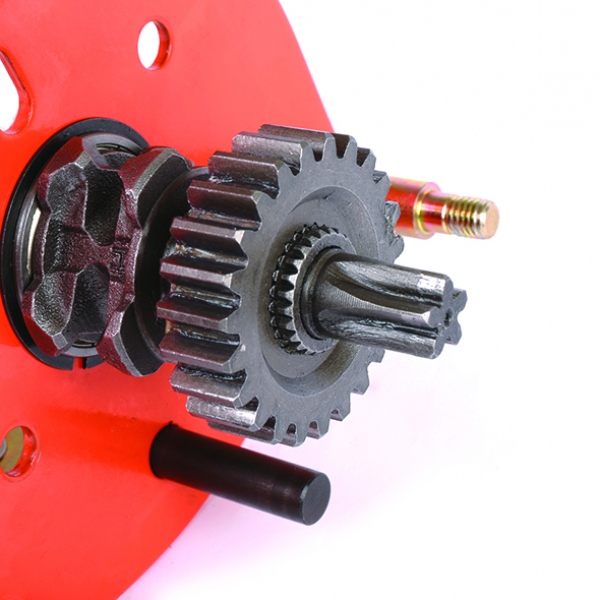

Specially designed long triangle spline shaft,central axis can be completely withdraw,
easy to clean, complet🐼ely solve the stuck chain problem.
Upper and lower hooks made of high quality forged alloy, pass the 1.3-1.5 times
overload test to ensure safety.

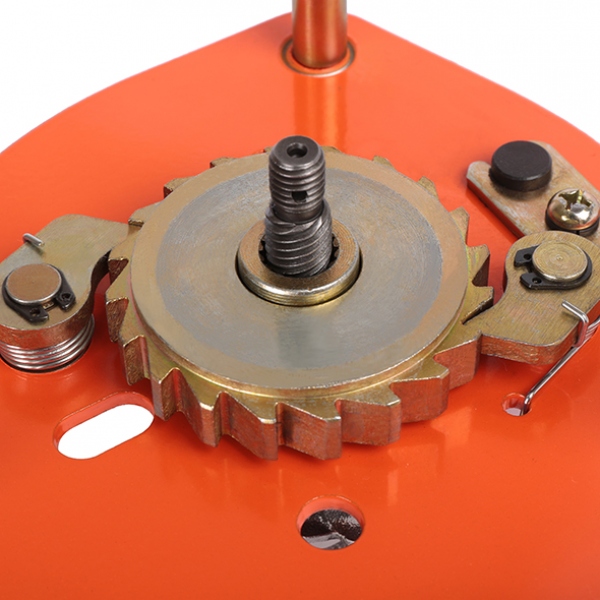

The safety factor ofsymmetrical double pawl braking system increased more than single
pawl braking system.

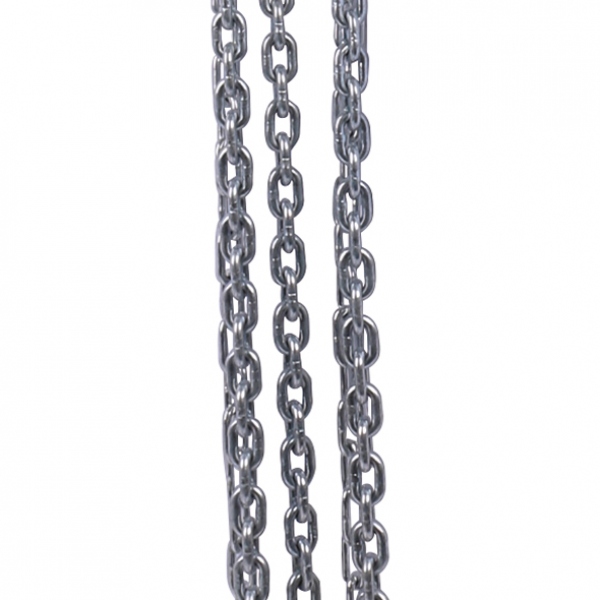

Grade 80 lifting chain, 🐬to meet international standards🍸.

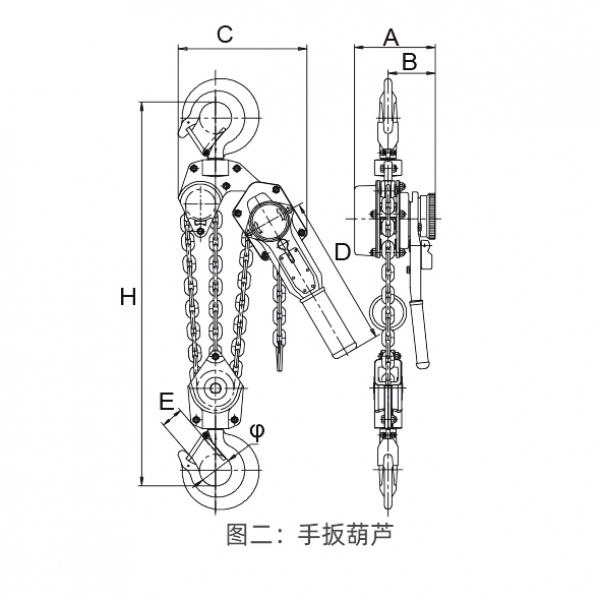

| Item No. | Item name | H(mm) | A(mm) | B(mm) | C(mm) | D(mm) | Net weight |
|---|---|---|---|---|---|---|---|
| S200110 | lever block0.5T*1.5m | 31.5 | 143 | 86 | 118 | 253 | 5.5KG |
| S200111 | lever block0.5T*3m | 31.5 | 143 | 86 | 118 | 253 | 6.5KG |
| S200120 | lever block0.75T*1.5m | 35.5 | 148 | 87 | 132 | 278 | 6.9KG |
| S200121 | lever block0.75T*3m | 35.5 | 148 | 87 | 132 | 278 | 8.4KG |
| S200130 | lever block1T*1.5m | 37.5 | 153 | 90 | 140 | 278 | 7.9KG |
| S200131 | lever block1T*3m | 3705 | 153 | 90 | 140 | 278 | 8.9KG |
| S200140 | lever block1.5T*1.5m | 42.5 | 173 | 99 | 145 | 378 | 10.5KG |
| S200141 | lever block1.5T*3m | 42.5 | 173 | 99 | 145 | 378 | 12.0KG |
| S200150 | lever block2T*1.5m | 45 | 181 | 105 | 152 | 378 | 14.3KG |
| S200151 | lever block2T*3m | 45.0 | 181 | 105 | 152 | 378 | 16.3KG |
| S200160 | lever block3T*1.5m | 50 | 200 | 112 | 199 | 418 | 20.7KG |
| S200161 | lever block3T*3m | 50 | 200 | 112 | 199 | 418 | 25.7KG |
| S200170 | lever block6T*1.5m | 53.0 | 200 | 112 | 230 | 418 | 28.0KG |
| S200171 | lever block6T*3m | 53.0 | 200 | 112 | 230 | 418 | 36.0KG |
| S200180 | lever block9T*1.5m | 67.0 | 200 | 112 | 338 | 418 | 49.0KG |
| S200181 | lever block9T*3m | 67.0 | 200 | 112 | 338 | 418 | 65.0KG |
