Hoist Series-chain block
Improved rotary gear , alloy steel precision machining, carburizing and heat treated technology,high hardness o🉐f gear, wear-resistant and rust-proof.
Housings with special crimping technology,higherꦐ strength, the ꦇchain is smoother.
Improvedtransmission sy💙stem brings more efficient transmission,more flexible op♍eration.
Specially designed long triangle spline shaft,central axi🍸s can be completely withdraw, easy to clean, completely solve the stuck chain problem.
Upper and♓ lower hooks made of high qual🎐ity forged alloy, pass the 1.3-1.5 times overload test to ensure safety.
The safety factor ofsymmetrical doubl🧔e pawl braking system increased more than single pawl braking system.
Grade 80 lifting cha📖in, to meet international standards.

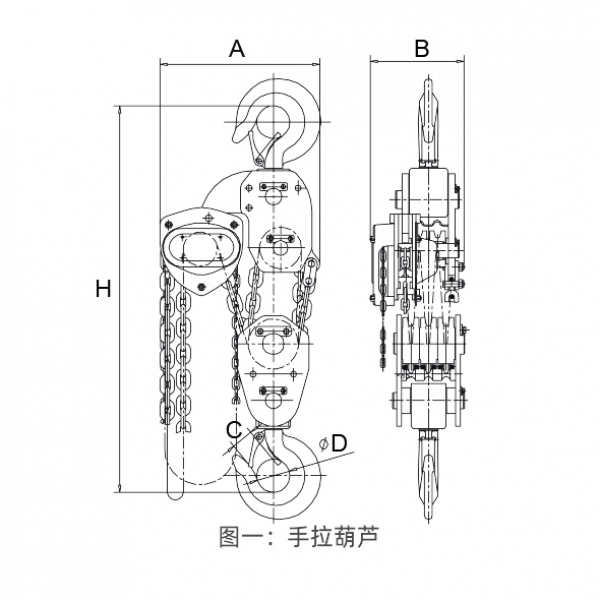

| Item No. | Item name | H(mm) | A(mm) | B(mm) | C(mm) | D(mm) | Net weight |
|---|---|---|---|---|---|---|---|
| S200010 | chain block0.5T*3m | 345 | 148 | 132 | 23 | 35 | 9.3KG |
| S200011 | chain block0.5T*6m | 345 | 148 | 132 | 23 | 35 | 13.6KG |
| S200020 | chain block1T*3m | 376 | 172 | 151 | 26 | 40 | 12.3KG |
| S200021 | chain block1T*6m | 376 | 172 | 151 | 26 | 40 | 16.7KG |
| S200030 | chain block1.5T*3m | 442 | 196 | 173 | 29.5 | 45 | 22.0KG |
| S200031 | chain block1.5T*6m | 442 | 196 | 173 | 29.5 | 45 | 22.0KG |
| S200040 | chain block2T*3m | 470 | 210 | 175 | 34 | 50 | 19.5KG |
| S200041 | chain block2T*6m | 470 | 210 | 175 | 34 | 50 | 26.4KG |
| S200050 | chain block3T*3m | 580 | 255 | 205 | 37.5 | 55 | 26.4KG |
| S200051 | chain block3T*6m | 580 | 255 | 205 | 37.5 | 55 | 32.8KG |
| S200060 | chain block5T*3m | 690 | 280 | 189 | 41 | 65 | 43.0KG |
| S200061 | chain block5T*6m | 690 | 280 | 289 | 41 | 65 | 55.0KG |
| S200070 | chain block7.5T*3m | 800 | 433 | 189 | 50 | 85 | 71.6KG |
| S200071 | chain block7.5T*6m | 800 | 433 | 189 | 50 | 85 | 90.0KG |
| S200080 | chain block10T*3m | 830 | 463 | 189 | 51 | 85 | 80.7KG |
| S200081 | chain block10T*6m | 830 | 463 | 189 | 51 | 85 | 98.0KG |
