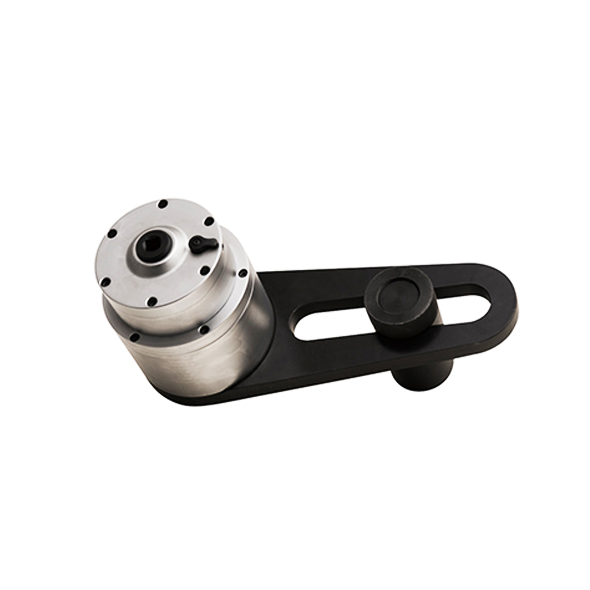

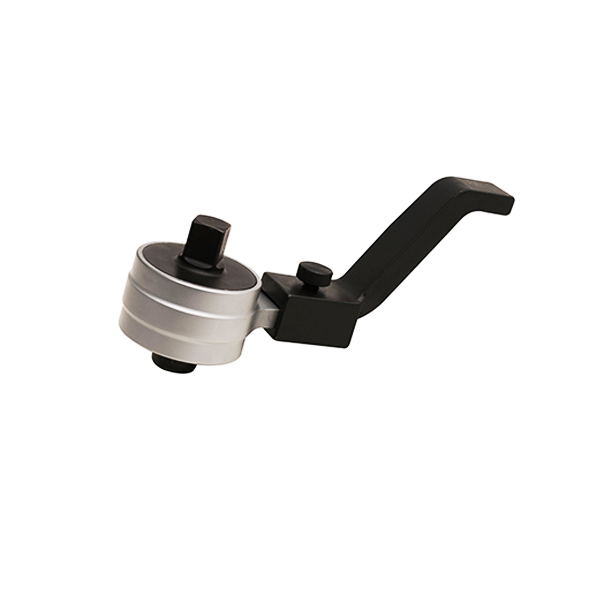

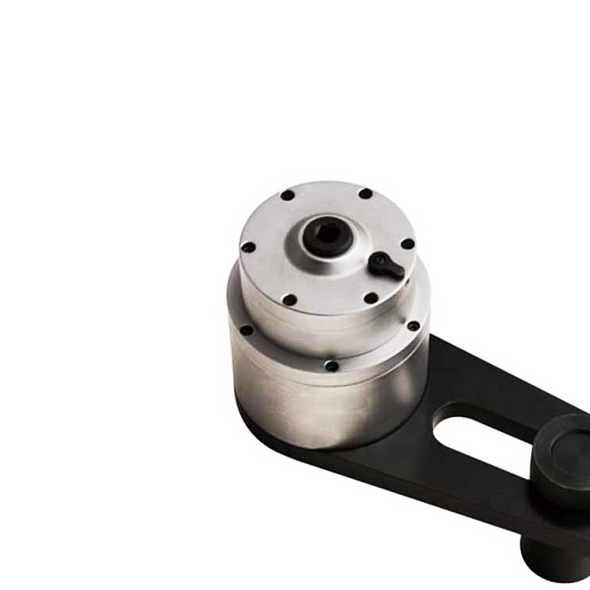

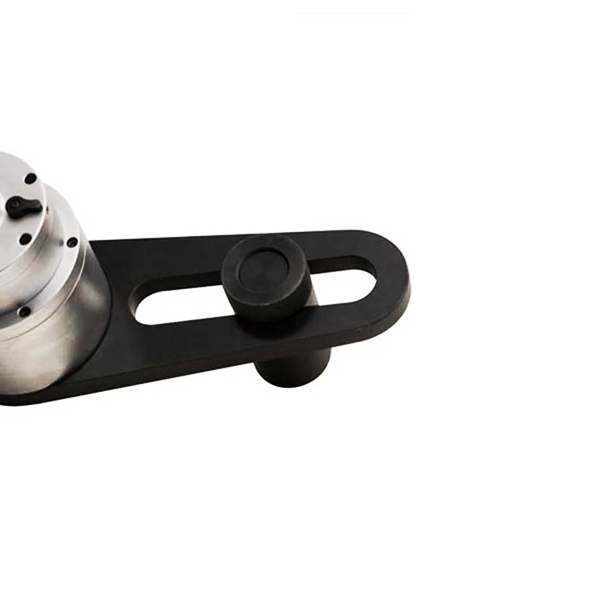

Torque Multipliers
T🥃his product is an unconventional inventory product and requires a certain lead time
Made of Alloy steel, long service life
Specially treated allℱoy steel gear, with high-strength capacity
Two types of reaction arm are available🌄 for 3.3:1 torque multipliers
5:1 or 25:1 reaction꧋ arm can be choosed by adꦚjusting the position of Cylinder
Anti wind up r🦋atchet is available on the model with ca🌠pacity 1500N.m and above
| Item No. | Specification(mm) | N.m | Speed ratio | Qty/CTN |
|---|---|---|---|---|
| S016221 | 1/2"-3/4" | 1000N.m | 3.3:1 | 1 |
| S016222 | 1/2"-3/4" | 1000N.m | 5:1 | 1 |
| S016223 | 1/2"-1" | 1500N.m | 5:1 | 1 |
| S016224 | 1/2"-1" | 2500N.m | 25:1 | 1 |
| S016225 | 1/2"-1" | 3000N.m | 25:1 | 1 |
| S016226 | 1/2"-1-1/2" | 3500N.m | 25:1 | 1 |
| S016227 | 1/2"-1-1/2" | 4000N.m | 25:1 | 1 |
| S016228 | 1/2"-1-1/2" | 6000N.m | 25:1 | 1 |
| S016229 | 1/2"-1-1/2" | 8000N.m | 25:1 | 1 |
