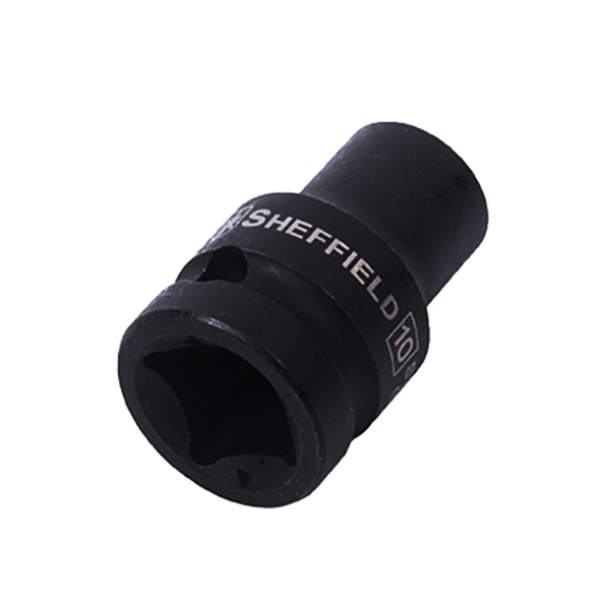

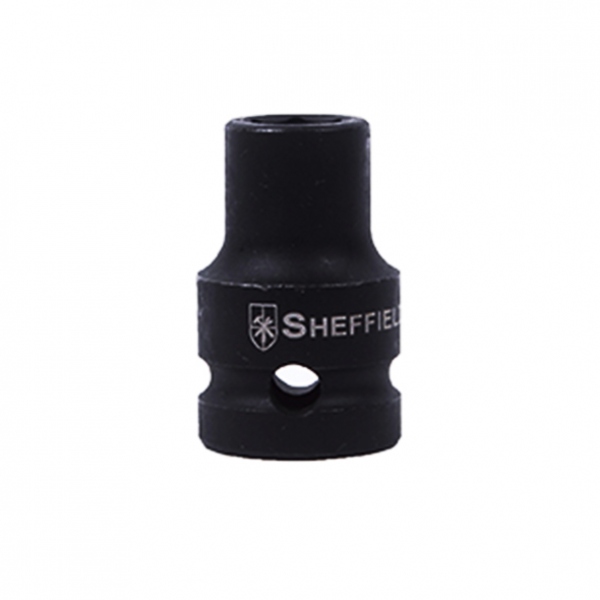

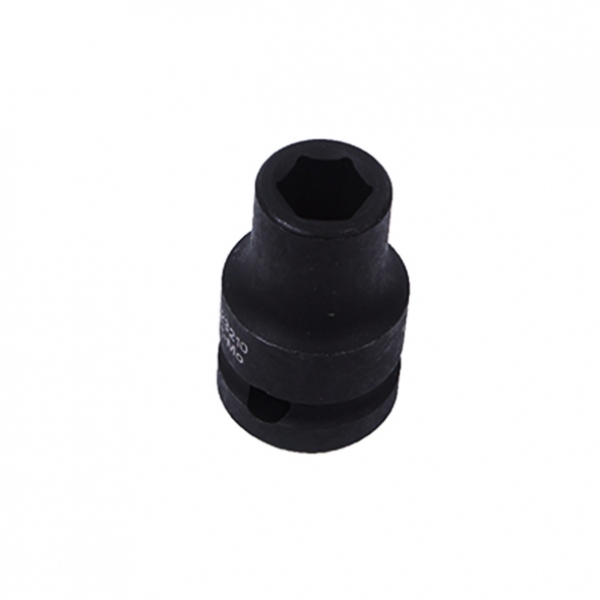

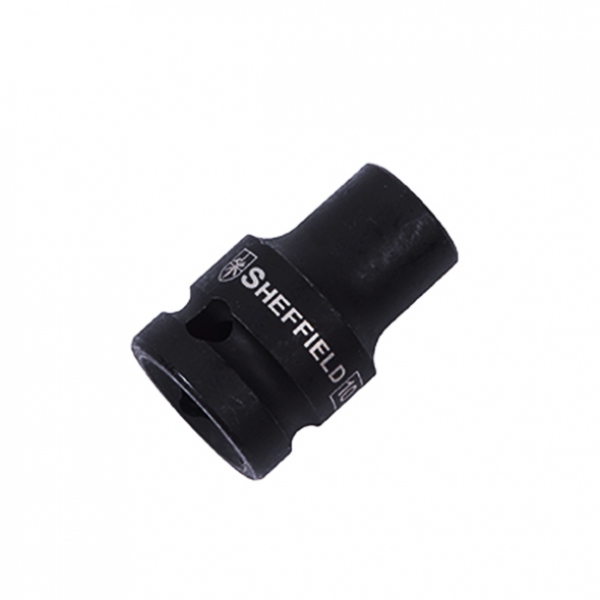

1/2”系列六角风动套筒
采用CR-MO材质，整体冷锻加工制造
表面磷酸锰处理，耐腐蚀

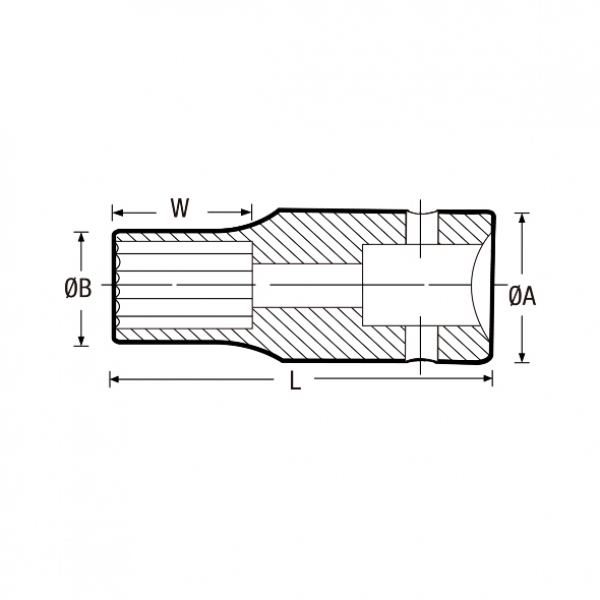

| 货号 | 规格(mm) | W(mm) | ?A(mm) | ?B(mm) | L1 | 包装数量 |
|---|
| S123210 | 10 | 18 | 23.8 | 17 | 38 | 12 |
| S123211 | 11 | 18 | 23.8 | 18 | 38 | 12 |
| S123212 | 12 | 18 | 23.8 | 19 | 38 | 12 |
| S123213 | 13 | 18 | 23.8 | 20 | 38 | 12 |
| S123214 | 14 | 18 | 23.8 | 22 | 38 | 12 |
| S123215 | 15 | 18 | 23.8 | 23 | 38 | 12 |
| S123216 | 16 | 18 | 23.8 | 23 | 38 | 12 |
| S123217 | 17 | 18 | 25.8 | 23 | 38 | 12 |
| S123218 | 18 | 18 | 25.8 | 23 | 38 | 12 |
| S123219 | 19 | 18 | 27.8 | 23 | 38 | 12 |
| S123221 | 21 | 18 | 29.8 | 23 | 38 | 12 |
| S123222 | 22 | 14 | 30 | 31.8 | 38 | 12 |
| S123223 | 23 | 14 | 30 | 31.8 | 38 | 12 |
| S123224 | 24 | 14 | 30 | 33.8 | 38 | 12 |
| S123227 | 27 | 14 | 30 | 37.8 | 42 | 12 |
| S123230 | 30 | 12 | 30 | 41.8 | 43 | 12 |
| S123232 | 32 | 12 | 30 | 43.8 | 43 | 12 |
