12.5mm系列英制12角标准套筒
1/2"方头驱动
采用铬钒钢材质
表面镀铬,镜面抛光处理

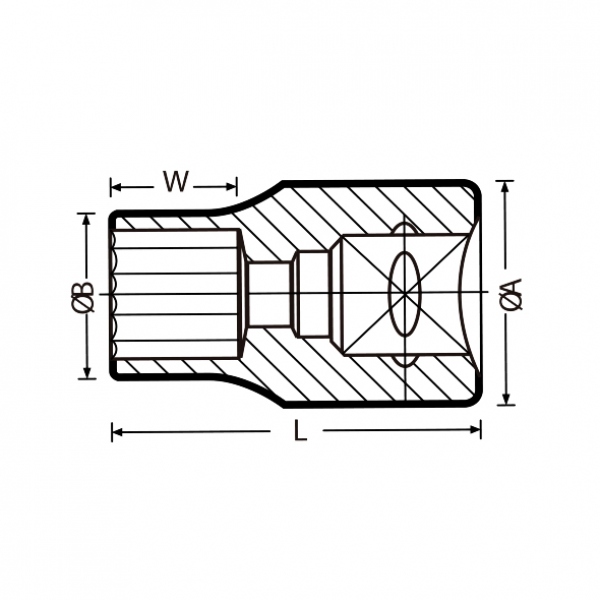

| 货号 | 规格(mm) | L(mm) | ?A(mm) | ?B(mm) | 包装数量 |
|---|
| S012201 | 1/4" | 38X12 | 21.8 | 10.4 | 12 |
| S012202 | 5/16" | 38X10 | 21.8 | 13.5 | 12 |
| S012203 | 3/8" | 38X12 | 21.8 | 14.5 | 12 |
| S012204 | 7/16" | 38X12 | 21.8 | 15.4 | 12 |
| S012205 | 1/2" | 38X12 | 21.8 | 18.7 | 12 |
| S012206 | 9/16" | 38X16 | 22.8 | 20.8 | 12 |
| S012207 | 19/32" | 38X14 | 20.8 | 21.8 | 12 |
| S012208 | 5/8" | 38X14 | 20.8 | 21.8 | 12 |
| S012209 | 11/16" | 38X14 | 21.8 | 23.9 | 12 |
| S012210 | 3/4" | 38X18 | 22.9 | 26 | 12 |
| S012211 | 25/32" | 38X18 | 23.9 | 28 | 12 |
| S012212 | 13/16" | 38X18 | 23.9 | 28 | 12 |
| S012213 | 7/8" | 40X20 | 26 | 29.1 | 12 |
| S012214 | 15/16" | 40X20 | 28 | 32.2 | 12 |
| S012215 | 1" | 40X20 | 30.1 | 33.3 | 12 |
| S012216 | 1-1/16" | 43X21 | 30.1 | 35.4 | 12 |
| S012217 | 1-1/8" | 43X21 | 32.2 | 37.4 | 12 |
| S012218 | 1-3/16" | 43X21 | 34.3 | 39.5 | 12 |
| S012219 | 1-1/4" | 43X22 | 35.4 | 41.6 | 12 |
